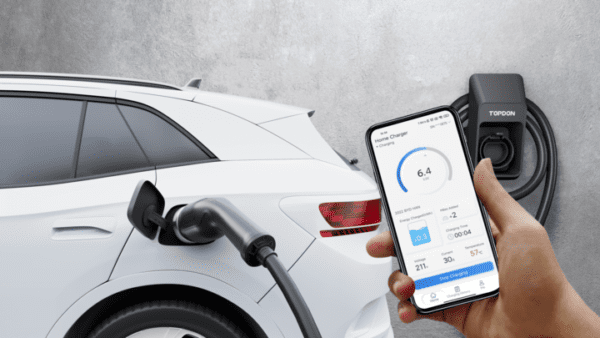

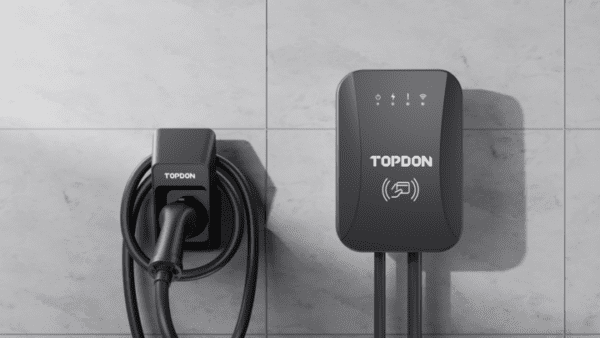

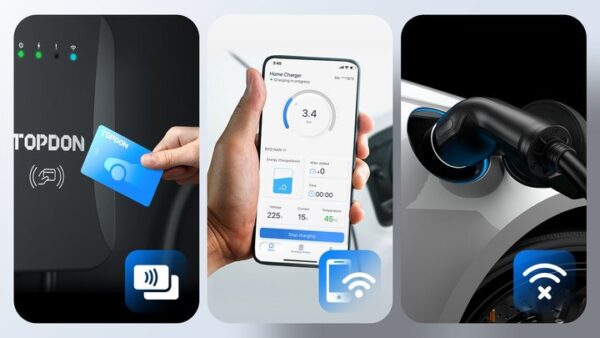

Description “PulseQ E Charging Station 11KW” The PulseQ E Charging Station by TOPDON is the first EV charging station from the brand. Compatible with most electric vehicles, it features an IEC62196-2 Type 2 connector. Its compact design and various mounting options make it space-saving and suitable for outdoor installation. Accessible via an app, the charging station allows users to program and monitor charging sessions conveniently. Ensuring safety and durability, the PulseQ E is CE, LVD, RED, RoHS certified, and has passed the REACH test. It offers easy installation with multiple mounting options, three charging modes, an RFID reader for authentication, plug-and-play functionality, and app-based control. With its compact design and built-in multi-protection features, including an IP65 rating, the PulseQ E Charging Station 11KW is compatible with most European AC electric vehicles. Technical Details: – Weight: 7-9 kg – Manufacturer: TOPDON – Device Specification: IEC62196-2 Type 2 – Dimensions: 310 x 215 x 95 mm – Integrated Charging Cable: 5 m (optionally available in 7.5 m) – Maximum Charging Power: 11 kW – Voltage: 400 V AC, 3-phase – Current: 6-32 A – Authentication/Authorization: RFID system for authorization and charging release – IP Protection Class: IP65 – Certification: CE, LVD, RED, RoHS, and passed REACH test – Operating Temperature Range: -35°C to 55°C
