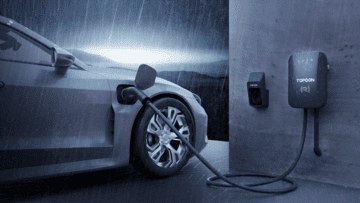

Description “PulseQ E Charging Station” The PulseQ is TOPDON’s first EV charging station. It is compatible with most electric vehicles and features an IEC62196-2 Type 2 connector. The compact design and various mounting options make it space-saving, and it can even be installed outdoors. The charging station can be accessed and adjusted via an app to program and monitor charging processes. Safety and durability are ensured with CE, LVD, RED, RoHS certification, and passing the REACH test. Easy installation with multiple mounting options, 3 charging modes, RFID reader, plug and play functionality, and app control. The compact design saves space. It comes with built-in multi-protection and has an IP65 rating. Compatible with most European AC electric vehicles. Technical Details: – Weight: 7-9 kg – Manufacturer: TOPDON – Device Specification: IEC62196-2 Type 2 – Dimensions: 310 x 215 x 95 mm – Integrated Charging Cable: 5 m (optionally available in 7.5 m) – Maximum Charging Power: 7 kW, 11 kW, 22 kW – Voltage: 400 V AC, 3-phase – Current: 6-32 A – Authentication/Authorization: RFID system for authorization and charging release – IP Protection Class: IP65 – Certification: CE, LVD, RED, RoHS, and passed REACH test – Operating Temperature Range: -35°C to 55°C
